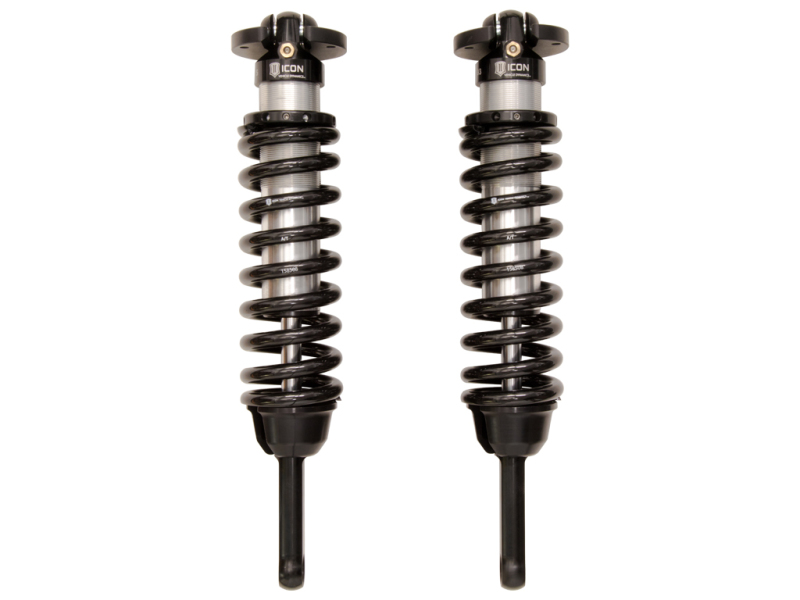

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Extended Travel length requires installation of aftermarket front upper control arms
Superior low speed control reduces body roll and increases on-road stability
ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS IR Coilover Kit
FK Rod End bearings provide extended longevity and minimal deflection
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
Bolt-in design makes for an easy install into OEM shock location
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
2005-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT
05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT
05-23 TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT
05-UP TACOMA EXT 2.5 VS IR CO KIT
OEM Wheels & Tires Fitment: Yes
TACOMA COILOVERS
COILOVER KIT
Coilover Set
58635
