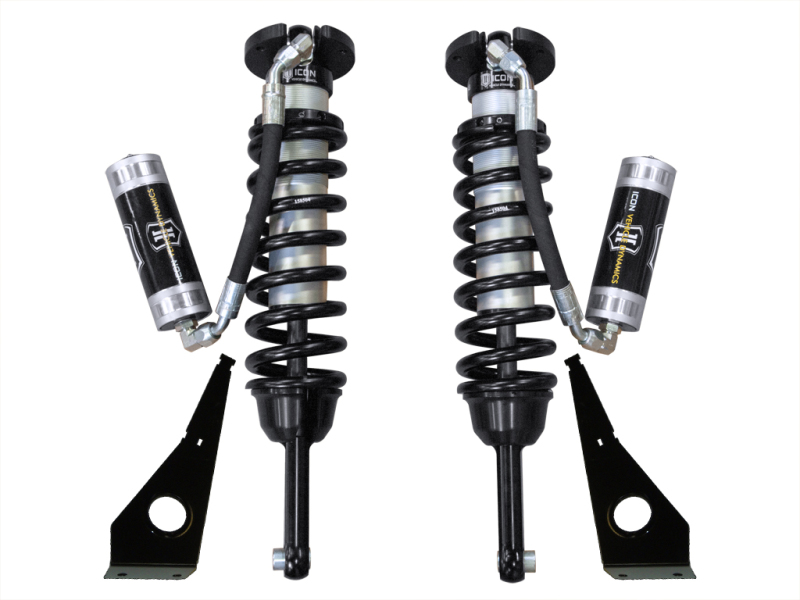

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tacoma's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
ICON 2005+ Toyota Tacoma 2.5 Series Shocks VS RR Coilover Kit
Vehicle specific tuned for superior shock damping and control
2005-UP TACOMA 2.5 VS REMOTE RESERVOIR COILOVER KIT
Hose Length Optimized for Increased Fluid Transfer
250 PSI nitrogen-charged internal reservoir
External Reservoirs Ensures Maximum Cooling
Kit Includes Sway bar relocation brackets
05-UP TACOMA 2.5 VS RR COILOVER KIT
05-23 TACOMA 2.5 VS RR COILOVER KIT
5/8" PTFE-lined spherical bearing
05-UP TACOMA 2.5 RR COILOVER KIT
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
Billet aluminum upper mount
CAD-plated threaded body
Completely re-buildable
TACOMA COILOVERS
Coilover Set
58730
