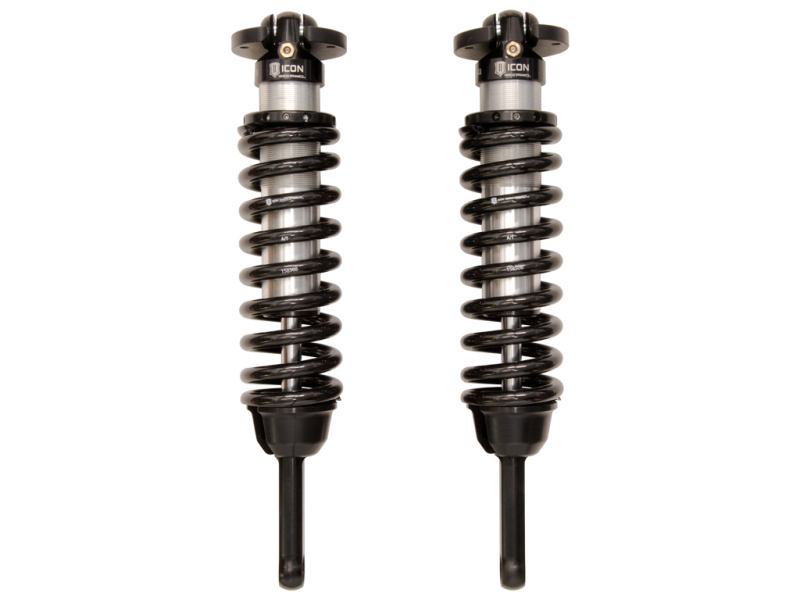

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #50: 700lb/in spring rate only recommended for trucks with additional weight added to front end
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
ICON 2005+ Toyota Tacoma 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
2005-UP TACOMA 2.5 VS INTERNAL RESERVOIR COILOVER KIT 700LB COILS
FK rod end bearings for extended longevity and minimal deflection
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
Vehicle specific tuned for superior shock damping and control
Increased wheel travel and improved ride quality over stock
6061 Aircraft grade aluminum CNC machined components
05-UP TACOMA 2.5 VS IR COILOVER KIT-700
05-23 TACOMA 2.5 VS IR COILOVER KIT-700
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
TACOMA COILOVERS
COILOVER KIT
Coilover Set
58630-700
