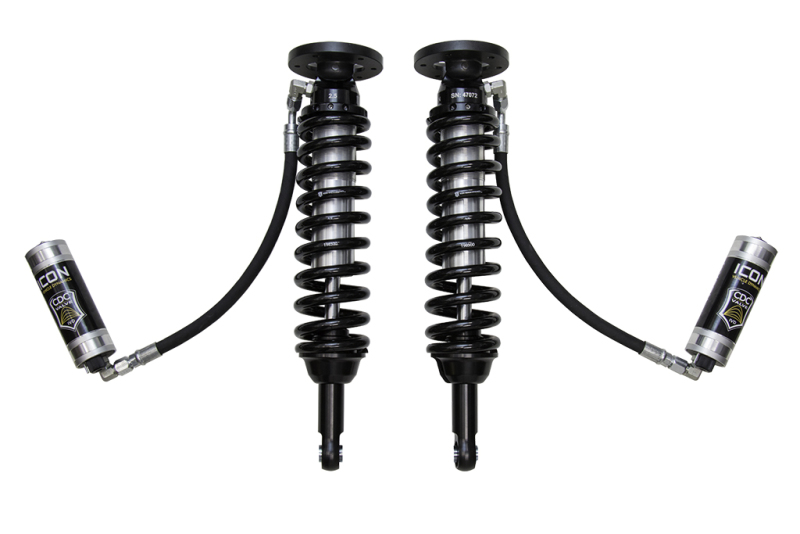

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2009-2013 Ford F150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 2WD.
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2009-2013 Ford F150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 2WD.
ICON 2.5 Series remote reservoir coilovers are an incredible upgrade for the Ford F150. Vehicle-specific valving provides a sport tuned feel while offering 1.75-2.63” of lift height for use of larger, more aggressive wheel and tire combos.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
External reservoir to attain cooler operating temperatures during extended off-road use
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
ICON 09-13 Ford F-150 2WD 1.75-2.63in 2.5 Series Shocks VS CDCV Coilover Kit
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
100% Bolt-on - cutting or welding necessary for installation
2009-2013 F150 2WD 1.75-2.63" LIFT 2.5 VS CDCV COILOVER KIT
ICON CDCV equipped for external tuneability of your shocks
6061 Aircraft grade aluminum CNC machined components
09-13 F150 2WD 1.75-2.63" 2.5 VS CDCV COILOVER KIT
Increased wheel travel and ride quality over stock
Adjustable for 1.75" - 2.63" of lift height
09-13 F150 2WD 1.75-2.63 2.5 CDCV CO KIT
Factory Wheels & Tires Fitment: Yes
ICON engineered Eibach Springs
F150 CDCV COILOVERS
COILOVER KIT
Coilover Set
91805C
