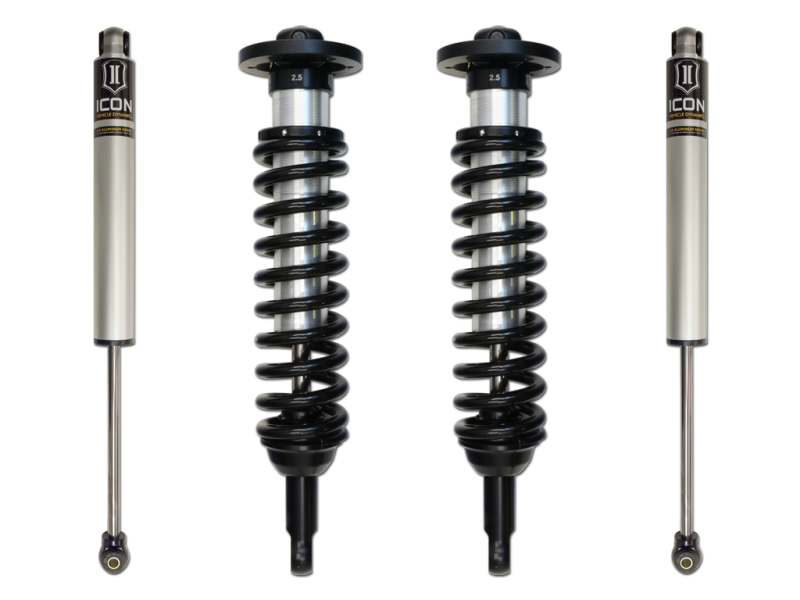

ICON Vehicle Dynamics 2009-2013 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2013 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Increased wheel travel and ride quality over stock with no change in towing capacity
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
100% bolt-on system - no drilling, cutting, or welding necessary for install
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2009-2013 FORD F150 2WD 0-2.63" LIFT STAGE 1 SUSPENSION SYSTEM
ICON 09-13 Ford F-150 2WD 0-2.63in Stage 1 Suspension System
2.0 aluminum body IFP rear shock with 5/8" polished shaft
09-13 FORD F150 2WD 0-2.63" STAGE 1 SUSPENSION SYSTEM
6061 aircraft grade aluminum CNC machined components
Adjustable coilovers provide 0-2.63" of lift height
Unique valving developed for the 2009-2013 F150
High strength alloy CNC machined lower bar pin
09-13 FORD F150 2WD STAGE 1 SUSP SYS
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
