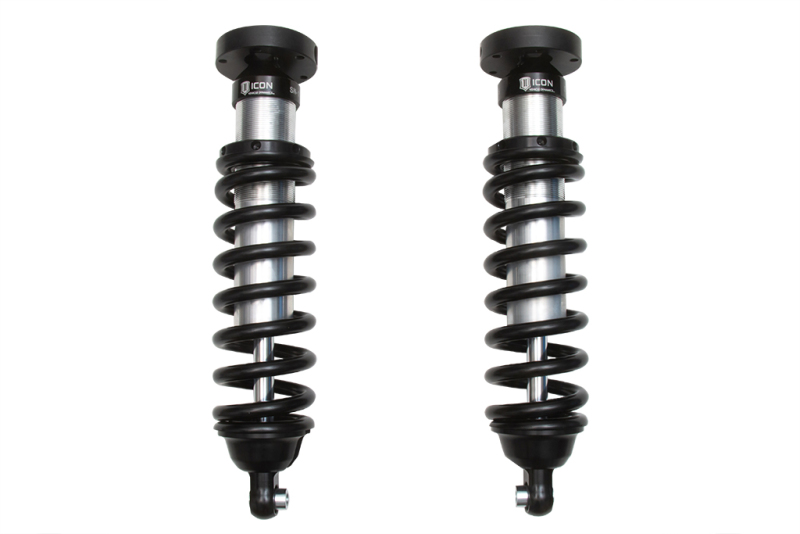

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
TECH NOTE: These "Extended Travel" length coilovers require installation of aftermarket front upper control arms. If using stock front upper control arms, consider "Standard Travel" versions, ICON part number 58620.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
Vehicle specific shock length and pairing with aftermarket front upper control arms yields maximum wheel travel
Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
2.5" diameter shock bodies with internal reservoirs for consistent performance
Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
TECH NOTE: Aftermarket front upper control arms required for installation
ICON 00-06 Toyota Tundra Ext Travel 2.5 Series Shocks VS IR Coilover Kit
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
00-06 TUNDRA/01-07 SEQUOIA EXT TRAVEL 2.5 VS IR COILOVER KIT
6061 Aircraft grade aluminum CNC machined components
2000-2006 TUNDRA EXT TRAVEL 2.5 VS IR COILOVER KIT
00-06 TUNDRA EXT TRAVEL 2.5 VS IR COILOVER KIT
00-06 TUNDRA EXT IR COILOVER KIT
Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
ICON engineered coil springs
TUNDRA COILOVERS
COILOVER KIT
Coilover Set
58625
