ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restrict oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality.
TECH NOTE: 2019-2023 Ram 1500 Rebel will have front lift height range of 1.25-2.25" over stock and 1" of rear lift over stock
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
2.5 Series front coilovers with remote reservoirs for improved shock cooling and performance
APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
2019-UP RAM 1500 2-3" LIFT STAGE 4 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS
Increased wheel travel and ride quality over stock with no change in towing capacity
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Adjustable remote reservoir coilovers yield 2-3" of front lift height over stock

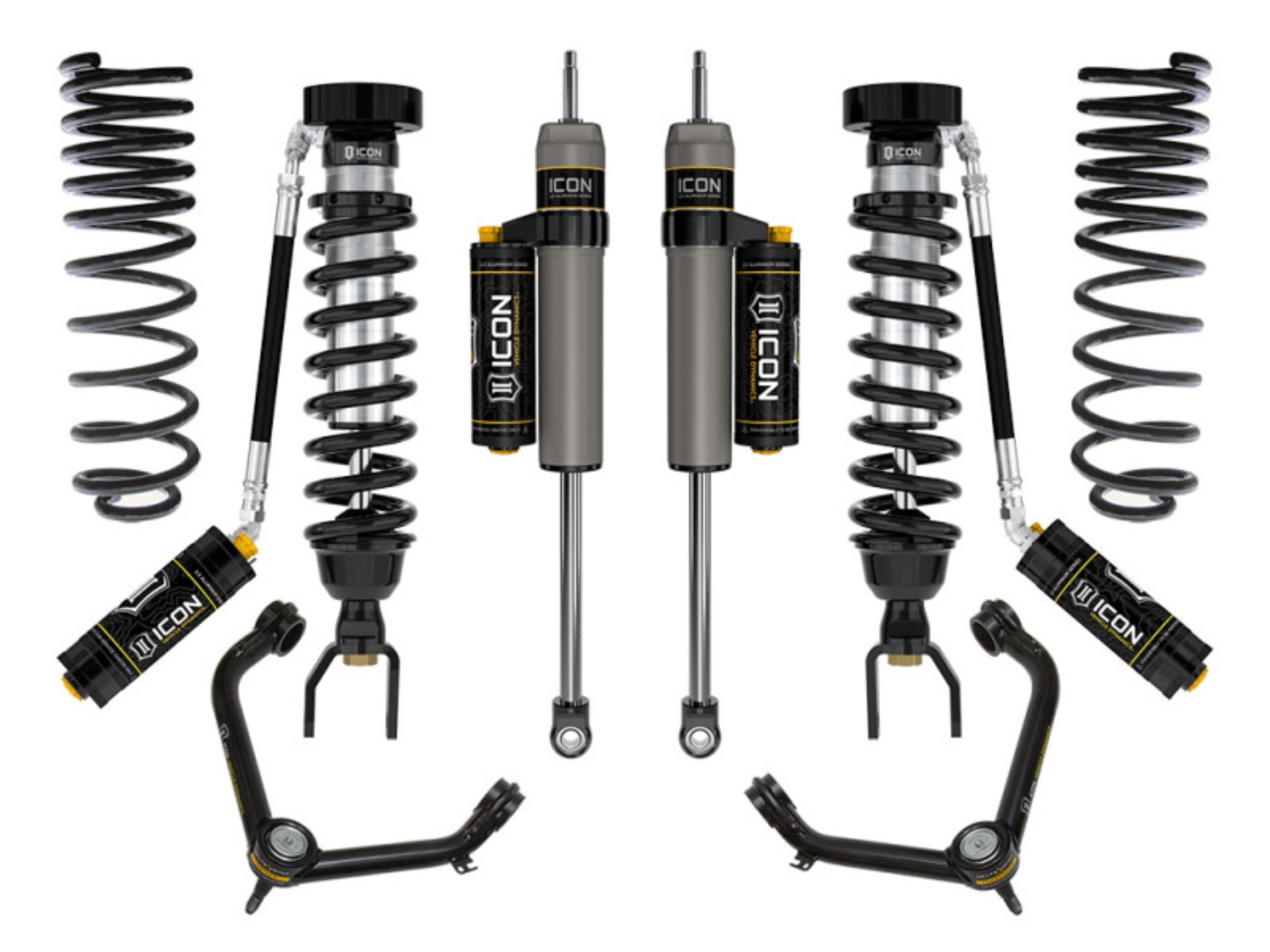

2019+ Ram 1500 2-3in. Stage 4 Suspension System w/ Tubular Upper Control Arms
2.5 Aluminum Series rear piggyback reservoir shocks with 7/8" polished shafts
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
APPLICATION NOTE #105: Not for vehicles with rear factory air ride
FK rod end bearings for extended longevity and minimal deflection
19-23 RAM 1500 2-3" STAGE 4 SUSPENSION SYSTEM W/ TUBULAR UCA
19-UP RAM 1500 2-3" STAGE 4 SUSPENSION SYSTEM W/ TUBULAR UCA
6061 Aircraft grade aluminum CNC machined components
APPLICATION NOTE #184: Will not fit Ram 1500 TRX
RAM 1500 STAGE 4 SUSPENSION SYSTEM TUBE
OEM Wheels & Tires Fitment: Yes
Suspension Lift Kit
SUSPENSION SYSTEM
K213114T
