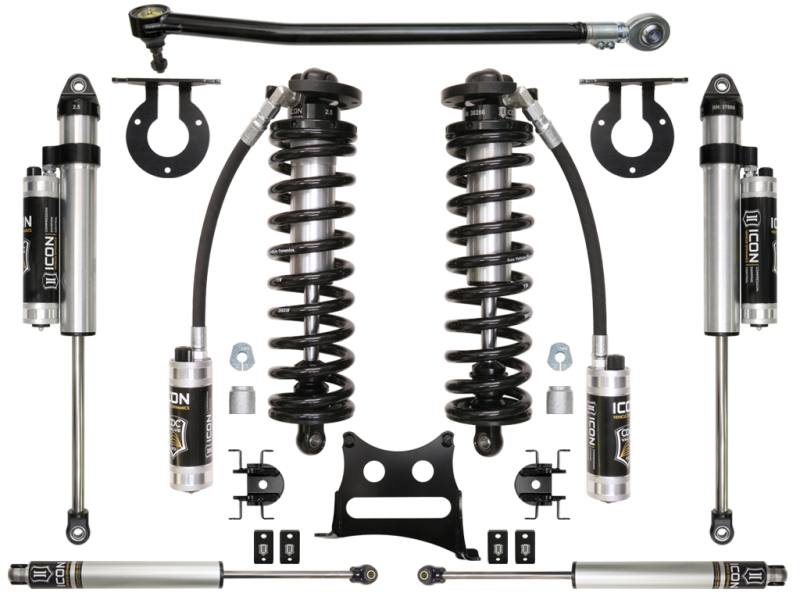

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-UP F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
Vehicle-specific shock valving provides unparalleled ride quality and control
2017-2022 FORD F-250/F-350 2.5-3" LIFT STAGE 4 COILOVER CONVERSION SYSTEM
Corrosion resistant anodized aluminum rear shock bodies with 7/8" shafts
2017-UP FORD F-250/F-350 2.5-3" LIFT STAGE 4 COILOVER CONVERSION SYSTEM
ICON 2017+ Ford F-250/F-350 2.5-3in Stage 4 Coilover Conversion System
APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
17-UP FORD F-250/F-350 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM
17-22 FORD F-250/F-350 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
Decreased body roll and improved on and off-road ride dynamics
Eibach springs guaranteed for life against sagging or breakage
Coilover conversion allows for addition of secondary shock
Bolt-in system fits in OE coil bucket location
Shocks are fully rebuildable and revalveable
APPLICATION NOTE #1: Only fits 4WD models
17-UP FSD 2.5-3" STG 4 CO CONV SYSTEM
17-22 FSD 2.5-3" STG 4 CO CONV SYSTEM
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
