ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-UP F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
TECH NOTE: 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
TECH NOTE: 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
TECH NOTE: 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
Vehicle-specific shock valving provides unparalleled ride quality and control
Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies

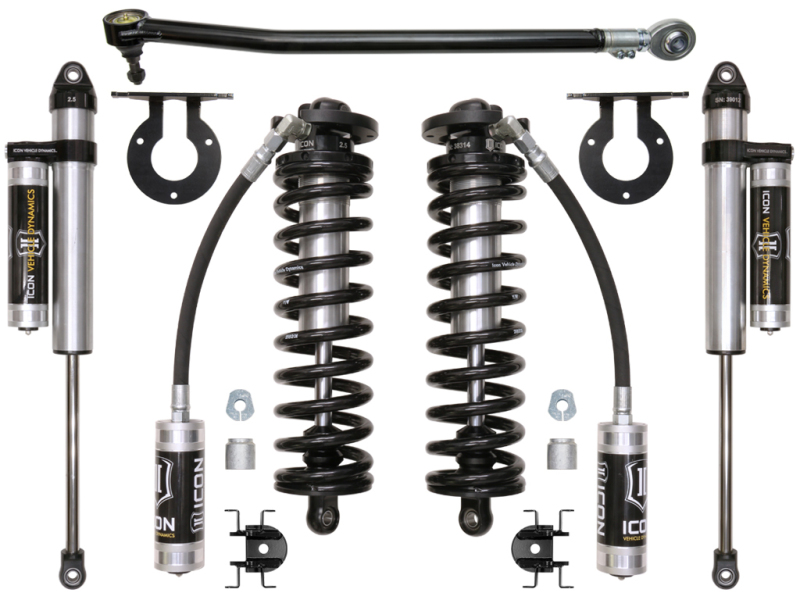

2017-UP FORD F-250/F-350 2.5-3" LIFT STAGE 3 COILOVER CONVERSION SYSTEM
ICON 2017+ Ford F-250/F-350 2.5-3in Stage 3 Coilover Conversion System
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Eibach coil springs guaranteed for life against sagging or breakage
APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models
FK Rod End bearings for extended longevity and minimal deflection
17-UP FORD F-250/F-350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM
17-23 FORD F-250/F-350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM
Decreased body roll and improved on and off-road ride dynamics
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
Coilover conversion allows for addition of secondary shock
Bolt-in system fits in OE coil bucket location
Shocks are fully rebuildable and revalveable
APPLICATION NOTE #1: Only fits 4WD models
17-UP FSD 2.5-3" STG 3 CO CONV SYSTEM
TECH NOTE: Will not fit 2024 models
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
K63143
