Reduce Wheel hop, bushing deflection, and cradle movement on your S550 Mustang with a Level 1 Cradle Bushing Lockout Kit from BMR's suspension. Built from 6061-T6 billet aluminum and stainless steel, BMR's CB010 Cradle Bushing Lockout Kit is designed to reduce cradle bushing deflection, which is one of the biggest causes of wheel hop. BMR's CB010's billet aluminum upper bushing lockout rings capture the inner bushing sleeve (front and rear) and the outer lip of the bushing cup on the cradle (front). The lower bushing locating washers (front) capture the bottom portion of the bushings' inner sleeves. By capturing both parts of the bushings' inner sleeves, movement on any plane (fore/aft, lateral, and vertical) is nearly eliminated. BMR's suspension designed the CB010 Cradle Bushing Lockout Kit for any application. This 100% bolt-on kit use existing bolt holes and hardware, allowing for easy installation with simple hand tools. Once installed, the Cradle Bushing Lockout Kit reduces bushing and cradle deflection with nearly no change in NVH. (During BMR's testing, no change in NVH was observed without accompanying modifications.) BMR's suspensions CB010 Cradle Bushing Lockout Kit allows you you affordably and effectively lessen wheel hop, bushing deflection, and cradle movement. Throughout testing, BMR has seen about an 80%-90% reduction in fore/aft and lateral cradle bushing deflection. A car with no other mods and stock tires that isn't driven overly hard is going to see a 90% or higher reduction, while a more race oriented S550 with sticky tires will see slightly less of a reduction. Launching the test vehicle at over 7,000 rpm on drag radials, BMR'saw about an 80% reduction in bushing deflection. Through the testing BMR has seen a 95% or greater reduction in vertical deflection in all testing situations. When performance is a must, rely on BMR's suspension! Installation time is 1-2 hours. Proudly made in the U.S.A.!
This 100% bolt-on kit use existing bolt-holes and hardware, allowing for easy installation with simple hand tools. Once installed, the Cradle Bushing Lockout Kit reduces bushing and cradle deflection with nearly no change in NVH.

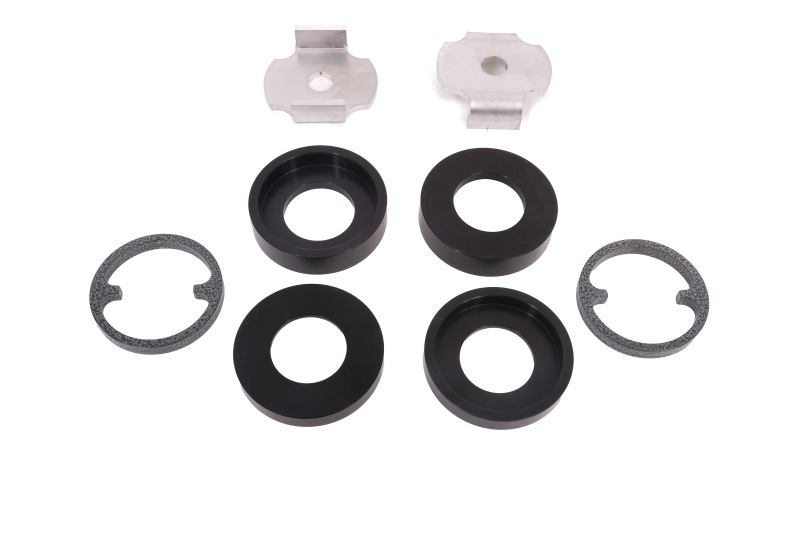

BMR 15-17 S550 Mustang Cradle Bushing Lockout Kit Level 1 - Black
CNC-machined 6061-T6 billet aluminum upper bushing lockout rings
Greatly reduces stock subframe bushing deflection and wheel hop
Compatible with Steeda and other brand IRS subframe 'Braces'
CNC-formed stainless steel lower bushing support plates
Laser-cut lower bushing support washers
Uses factory bolt holes and hardware
Works on Convertible S550 models
Installs with simple hand tools
Fits 2024-Current S650 Mustangs
Suspension Subframe Bushing Kit
Fits 2015-2023 S550 Mustangs
Proudly designed in the USA!
Cradle Bushing Lockout Kit
1-2 hour installation time
Proudly made in the USA!
Durable anodized finish
BMR Suspension - CB010
No fabrication needed
100% bolt-on design
Cradle Bushing Kit
