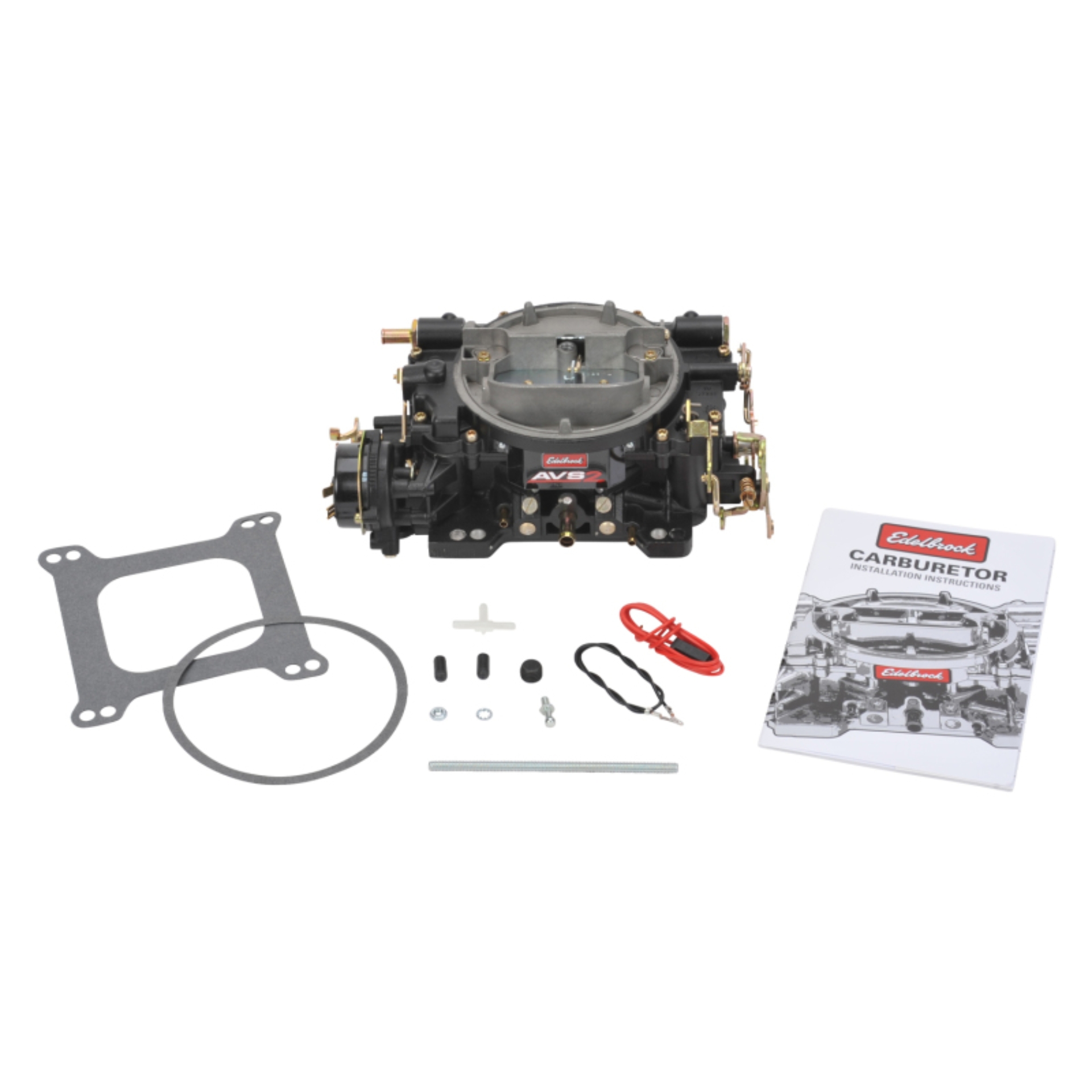

AVS2 Carburetor #19063 650 CFM With Electric Choke, Black Powder Coat (Non-EGR)

The Edelbrock AVS2 Series #19063 is a black-finished carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require 650 CFM of air-fuel flow. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #19063 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets

orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a satin-finished AVS2 with electric choke, order part #1906.

The Edelbrock #19063 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines.

Edelbrock Carburetor Thunder AVS2 Series 650 CFM Electric Choke Black Powder Coated (Non-EGR)

AVS2 Carburetor #19063 650 CFM With Electric Choke, Black Powder Coat (Non-EGR)

Edelbrock AVS2 650 CFM Carburetor

.070 x .037 metering rods

Carburetor

CARB
