Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Hydraulic - Magnum: Needs 9:1 compression, 2500+ stall, headers, gears. Choppy idle.; 286/286 Advertised Duration, 236/236 Duration .050", .490"/.490" Lift, 110 Lobe Separation; Valve spring upgrade required
Hydraulic - Magnum: Needs 9:1 compression, 2500+ stall, headers, gears. Choppy idle.
Needs 9:1 compression, 2800+ stall, headers, gears. Choppy idle.
Magnum 236/236 Hydraulic Flat Cam for Chevrolet Small Block

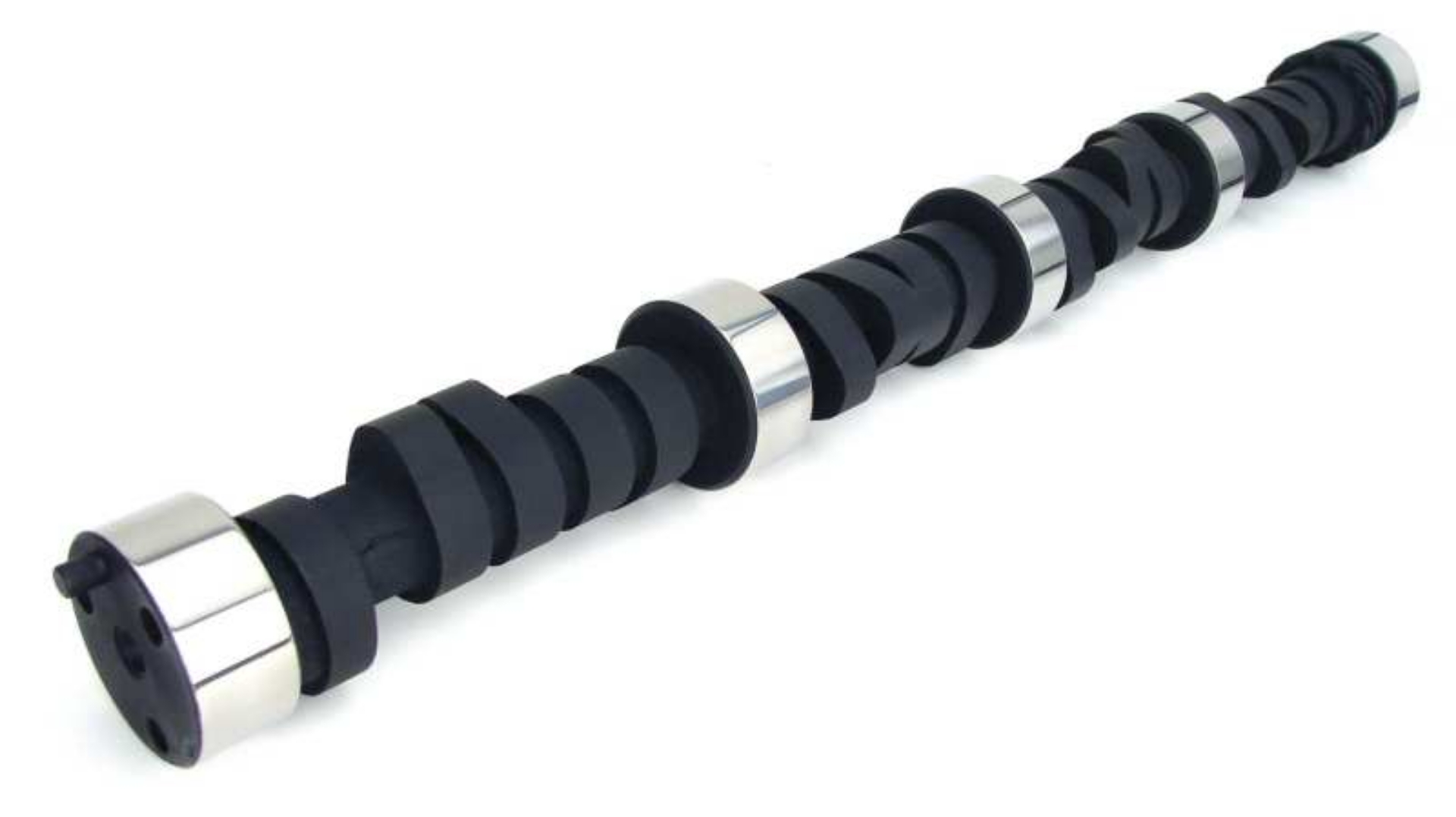

COMP Cams Magnum 286H-10 Camshaft for Small Block Chevy
Magnum 236/236 Hyd Flat Cam SBC
COMP Cams Camshaft CS 286H-10
CamShaft, CS 286H-10
Mag 236/236 HFTSBC
Engine Camshaft
