Change camber,caster, or both on twin traction beam Dana 44s with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Unstall zero degree sleeve 23109 to determine the change needed, then install the correct sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Set 23100 contaings 1 each: 23101, 23102, 23103, 23104, 23105, 23106, 23107, 23108, 23109 California Residents WARNING
Change camber, caster, or both on twin traction beam Dana 44s with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install zero-degree sleeve (23109) to determine the change needed, then install the correct sleeve. To split camber and caster adjustment, rotate sleeve 45°. Set 23100 contains 1 each: 23101, 23102, 23103, 23104, 23105, 23106, 23107, 23108, 23109
Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.
Front Adjustment Range: Camber/Caster ±0.25° to ±2.75°with additional series sleeves
Front Adjustment Range: Camber/Caster ±0.25˚ to ±2.75˚with additional series sleeves
Easily change caster / camber or both at the same time

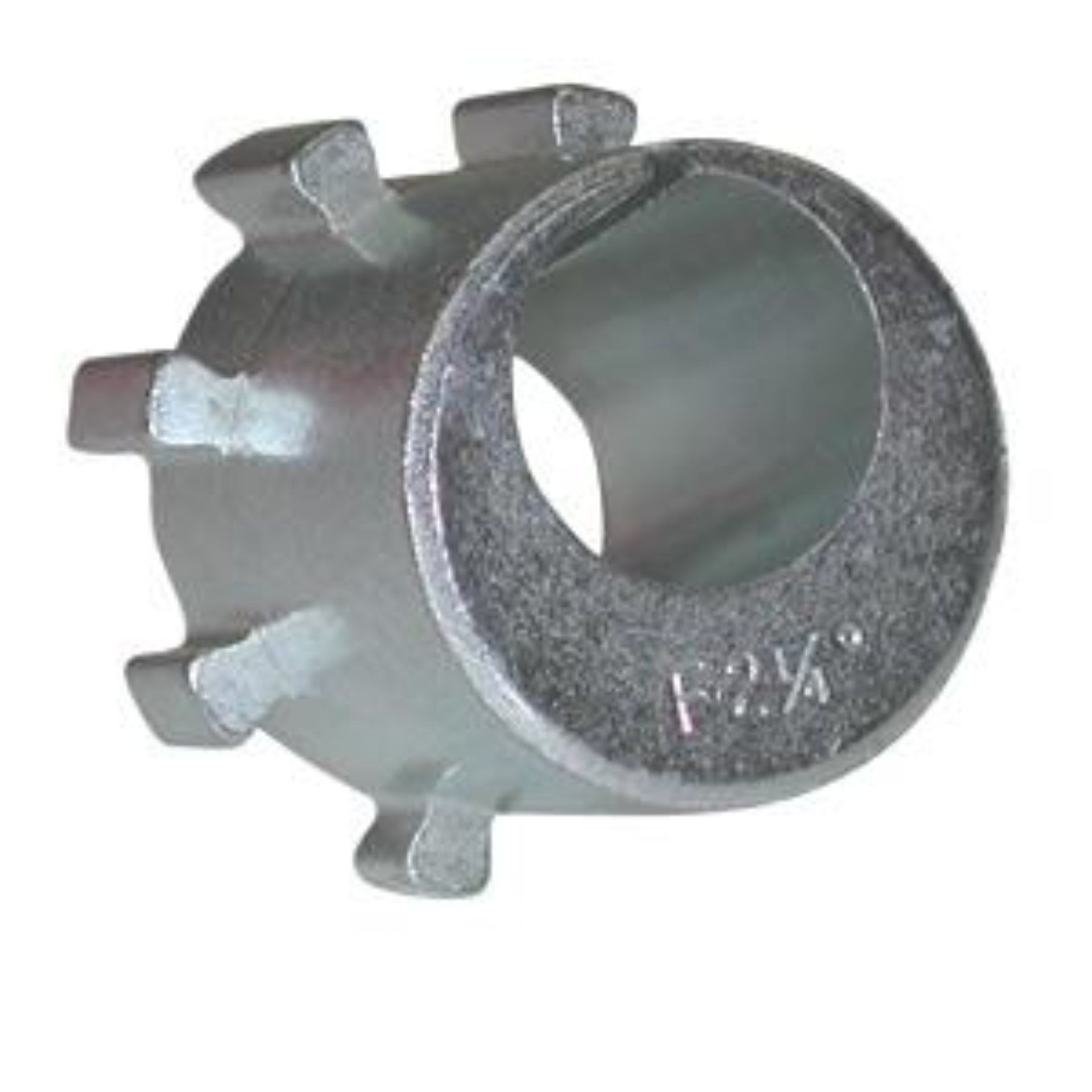

SPC Performance 4X4 Camber/Caster Sleeve SET
Clear Zinc coating for corrosion resistance
Kit includes an assortment of (9) sleeves
Recommended Tools: 77880 - Sleeve Puller
SPC 23100 CAM/CAS SLEEVE ASSORTMENT (9)
Alignment Caster / Camber Bushing Kit
4X4 CAM/CAS SLVS ASSORTMENT(9)
Required: 1 per wheel
ALIGNMENT BUSHING KT
23108: 2.00˚
23107: 1.75˚
23101: 0.25˚
23106: 1.50˚
23105: 1.25˚
23104: 1.00˚
23103: 0.75˚
23102: 0.50˚
23105: 1.25°
23103: 0.75°
23102: 0.50°
23101: 0.25°
23109: 0.00°
23108: 2.00°
23107: 1.75°
23106: 1.50°
23104: 1.00°
23109: 0.00˚
ALIGN BUSHNG
