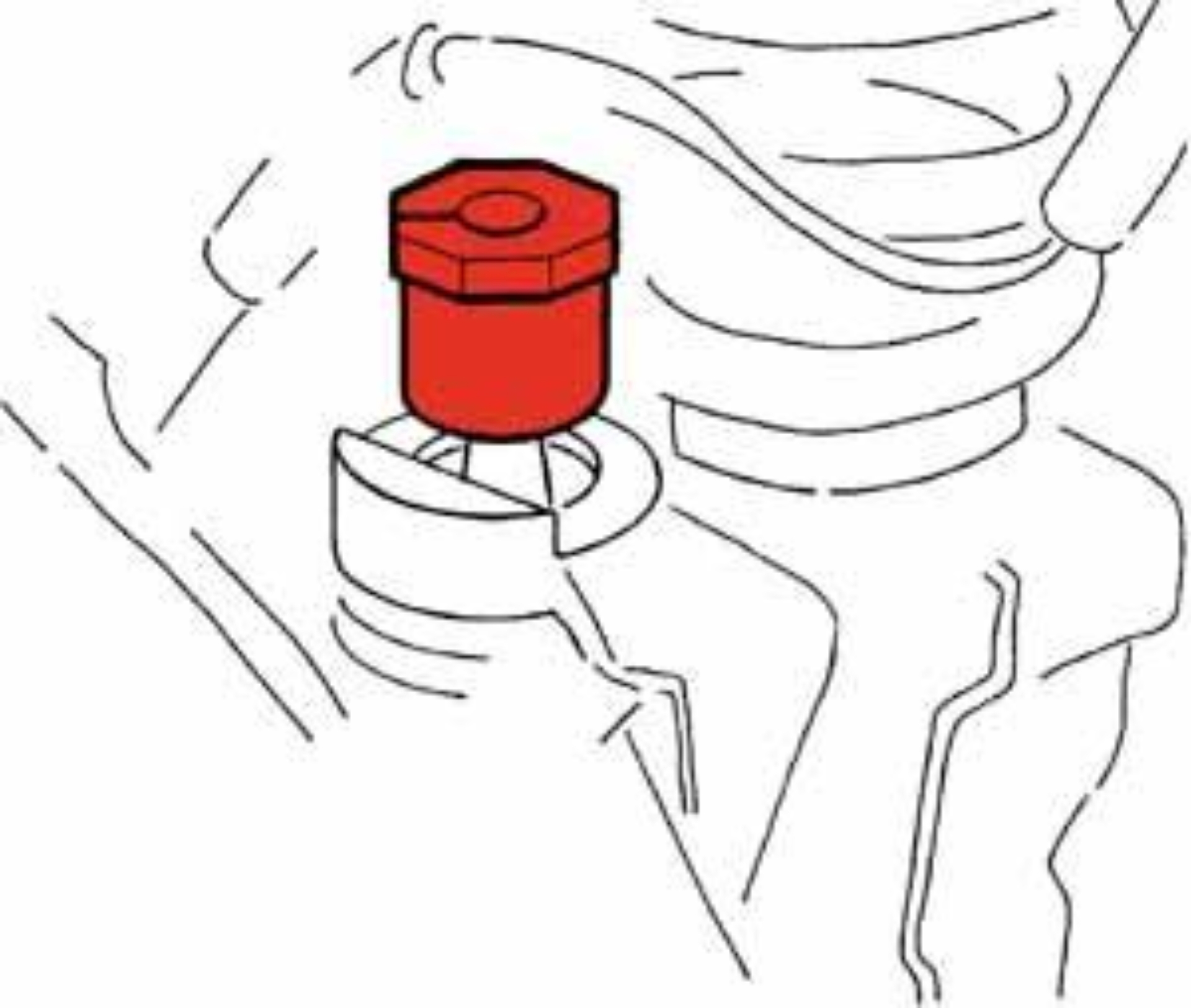

Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45deg. California Residents WARNING
This sleeve will easily change Camber and/or Caster 0.25˚. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23139) to determine the required change, then install the correct degree sleeve. To split cam ber and caster adjustment, rotate sleeve 45°.
This sleeve will easily change Camber and/or Caster 0.25°. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23139) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.
Easily change caster / camber or both at the same time
SPC Performance 1/4 deg. 4X4 Camber/Caster Sleeve
Front Adjustment Range: Camber/Caster ±0.25°
Front Adjustment Range: Camber/Caster ±0.25˚
Clear Zinc coating for corrosion resistance
Recommended Tools: 77880 - Sleeve Puller
SPC 23131 1/4 CASTER/CAMBER SLEEVE
Alignment Caster / Camber Bushing
1/4deg 4X4 CAM/CAS SLV
Required: 1 per wheel
1/4 4X4 CAM/CAS SLV
ALIGNMENT BUSHING
ALIGN BUSHNG
