This sleeve will easily change Camber and/or Caster 1.25˚ for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23109) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
This sleeve will easily change Camber and/or Caster 1.25° for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23109) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
Change camber,caster, or both on twin traction beam Dana 44s with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Unstall zero degree sleeve 23109 to determine the change needed, then install the correct sleeve. To split camber and caster adjustment, rotate sleeve 45deg. California Residents WARNING
Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.
Easily change caster / camber or both at the same time

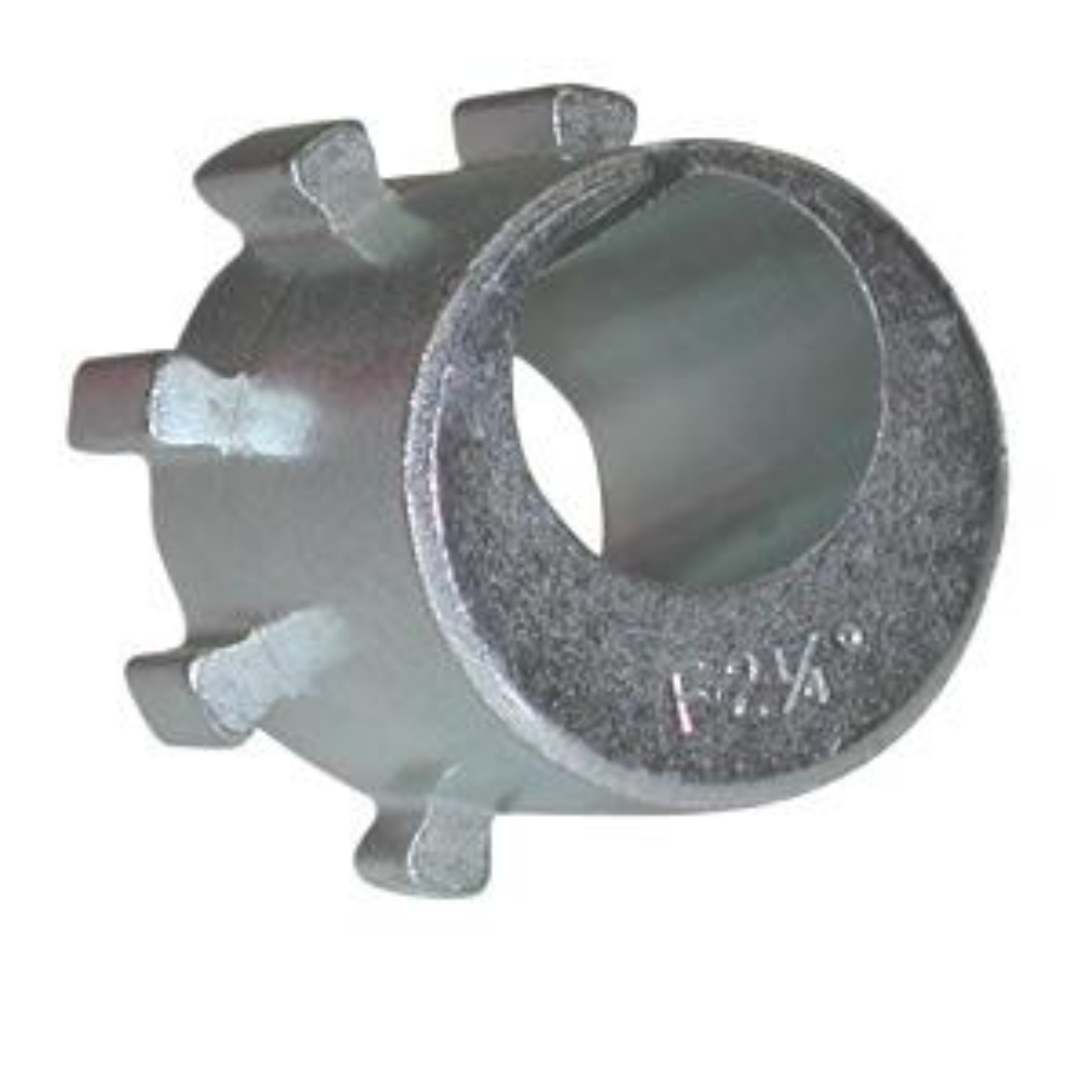

SPC Performance 1-1/4 deg. FORD Camber/Caster Sleeve
Front Adjustment Range: Camber/Caster ±1.25°
Front Adjustment Range: Camber/Caster ±1.25˚
Clear Zinc coating for corrosion resistance
Recommended Tools: 77880 - Sleeve Puller
SPC 23105 1-1/4 CASTER/CAMBER SLEEVE
Alignment Caster / Camber Bushing
1-1/4deg FORD CAM/CAS SLEEVE
1-1/4 FORD CAM/CAS SLEEVE
Required: 1 per wheel
ALIGNMENT BUSHING
ALIGN BUSHNG
