These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS. California Residents WARNING
This sleeve will easily change Camber and/or Caster .50° on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23199) to determine the required change, then install the correct degree sleeve. Note: Sleeves adjust to a smaller degree on Ford & Mazda 4WD light truck/SUV vehicles.
This sleeve will easily change Camber and/or Caster .50˚ on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23199) to determine the required change, then install the correct degree sleeve. Note: Sleeves adjust to a smaller degree on Ford & Mazda 4WD light truck/SUV vehicles.
Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.
Easily change caster / camber or both at the same time
Front Adjustment Range RWD: Camber/Caster ±0.50°
Front Adjustment Range 4WD: Camber/Caster ±.040°
Front Adjustment Range RWD: Camber/Caster ±0.50˚
Front Adjustment Range 4WD: Camber/Caster ±.040˚

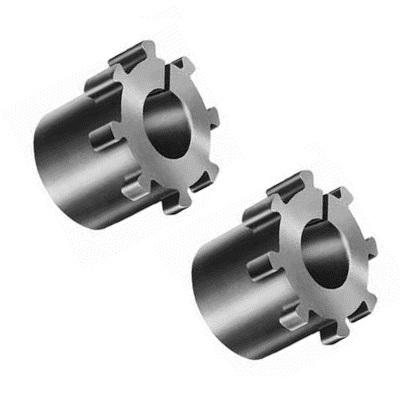

SPC Performance 1/2 deg. Camber/Caster Sleeve
Clear Zinc coating for corrosion resistance
Recommended Tools: 77880 - Sleeve Puller

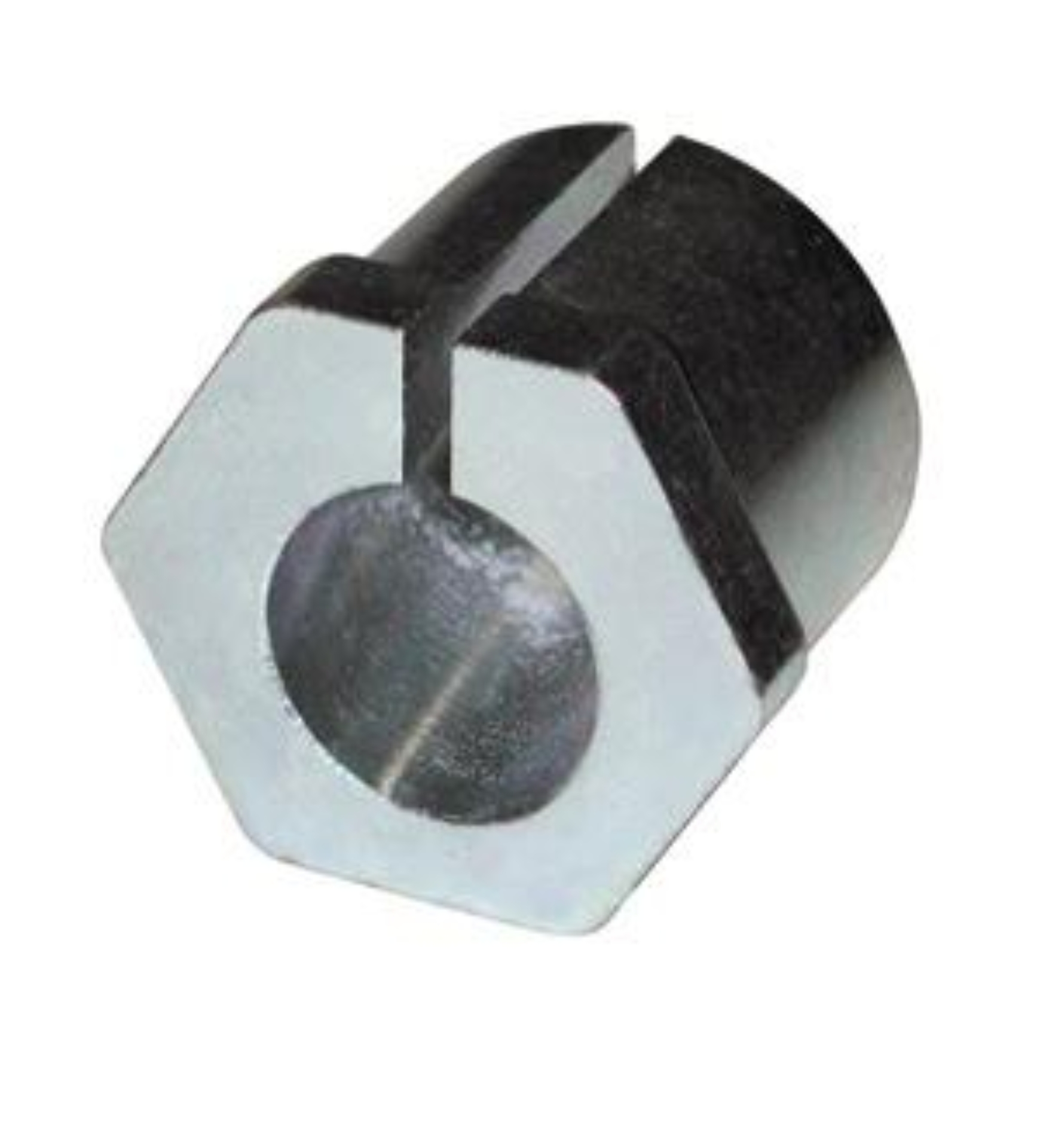

SPC 23182 1/2 CASTER/CAMBER SLEEVE
Alignment Caster / Camber Bushing
1/2deg CAMBER/CASTER SLEEVE
1/2 CAMBER/CASTER SLEEVE
Required: 1 per wheel
ALIGNMENT BUSHING
ALIGN BUSHNG
