ICON Vehicle Dynamics now offers a bolt-in hydraulic bump stop Kit for the 2007-2014 Toyota FJ Cruiser AND 2003-2024 4Runner. This kit reduces rear-end “kick” and helps to improve the overall off-road performance of the vehicle. The OEM rubber bumpstops have a limited energy absorption capacity that is released rather uncontrollably upon rebound, resulting in a harsh ride and ill-handling vehicle in rough terrain. The ICON hydraulic bump stops are velocity sensitive which means that the amount of energy absorbed increases the faster they are engaged, so those harsh g-outs and square edges are less likely to interrupt your off-road adventures. Vehicles equipped with the ICON hydraulic bumpstop kit will have an increased bottom-out resistance over stock, as well as an improved drivability off-road. This kit installs easily inside the coil, and the bumpstops are fully rebuildable with the ability to be tuned for a custom ride. With a simple installation, proven effectiveness, and no loss in travel there is no reason not to bolt up the ICON Vehicle Dynamics hydraulic bumpstop kit to your ride and experience the difference.
ICON Vehicle Dynamics now offers a bolt-in hydraulic bumpstop Kit for the 2007-2014 Toyota FJ Cruiser AND 2003-UP 4Runner. This kit reduces rear-end “kick” and helps to improve the overall off-road performance of the vehicle. The OEM rubber bumpstops have a limited energy absorption capacity that is released rather uncontrollably upon rebound, resulting in a harsh ride and ill-handling vehicle in rough terrain. The ICON hydraulic bumpstops are velocity sensitive which means that the amount of energy absorbed increases the faster they are engaged, so those harsh g-outs and square edges are less likely to interrupt your off-road adventures. Vehicles equipped with the ICON hydraulic bumpstop kit will have an increased bottom-out resistance over stock, as well as an improved drivability off-road. This kit installs easily inside the coil, and the bumpstops are fully rebuildable with the ability to be tuned for a custom ride. With a simple installation, proven effectiveness, and no loss in travel there is no reason not to bolt up the ICON Vehicle Dynamics hydraulic bumpstop kit to your ride and experience the difference.
Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
Vehicles equipped with the ICON hydraulic bump stop kit will have an increased bottom-out resistance over stock, reduces rear-end “kick”,as well as an improves drivability off-road.
TECH NOTE: Vehicles equipped with factory rear air suspension require rear coil conversion, ICON part number 56110, and ICON rear coil springs, ICON part number 52700 or 52800
Velocity sensitive bumpstop increases the amount of energy absorbed the faster it is hit

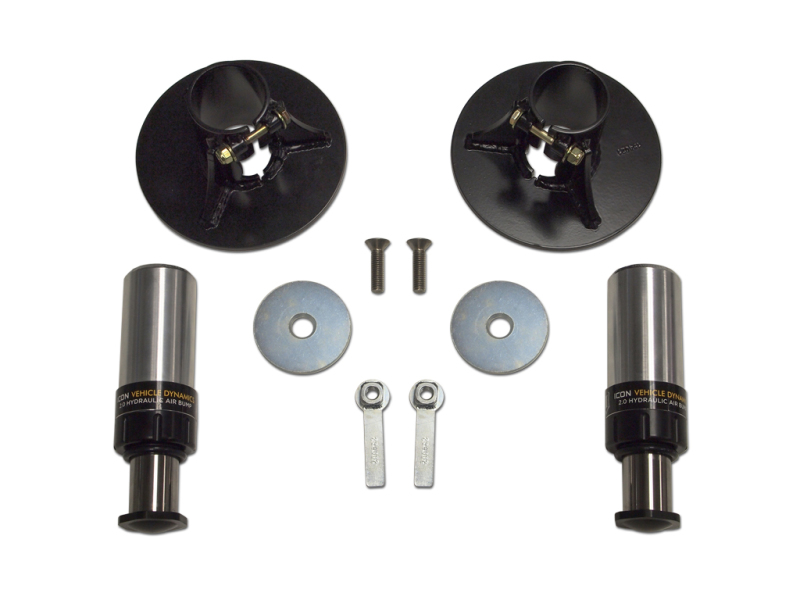

ICON 2007+ Toyota FJ / 2003+ Toyota 4Runner Rear Air Bump Kit
Hydraulic / pneumatic bumpstop increases bump energy capacity
2007-2014 FJ CRUISER/2003-UP 4RUNNER REAR AIR BUMP KIT
Reduces rear end kick and improves overall performance
Urethane rod seal and wiper for long service life
CAD Plated body for corrosion free service
07-14 FJ/ 03-UP 4RUNNER REAR AIR BUMP KIT
07-14 FJ/03-24 4RUNNER REAR AIR BUMP KIT
Increased bottom resistance over stock
Easy installation inside coil
FJ/4RUNNER REAR AIR BUMP KIT
Suspension Bump Stop Kit
Pre-tuned for most users
REAR BUMPSTOP KIT
No loss in travel
User serviceable
56104
