This system features the S4 4-piston caliper mounted to a 12", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses are also included. The 12” SS4 fits most 16” or larger wheels.
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**
Fits Rear Ends w/GM Small Pattern 10/12 Bolt Bearing on Axle (BOA) Non-Flush Mount Housing Ends (5x4.75", 5x5"BC)

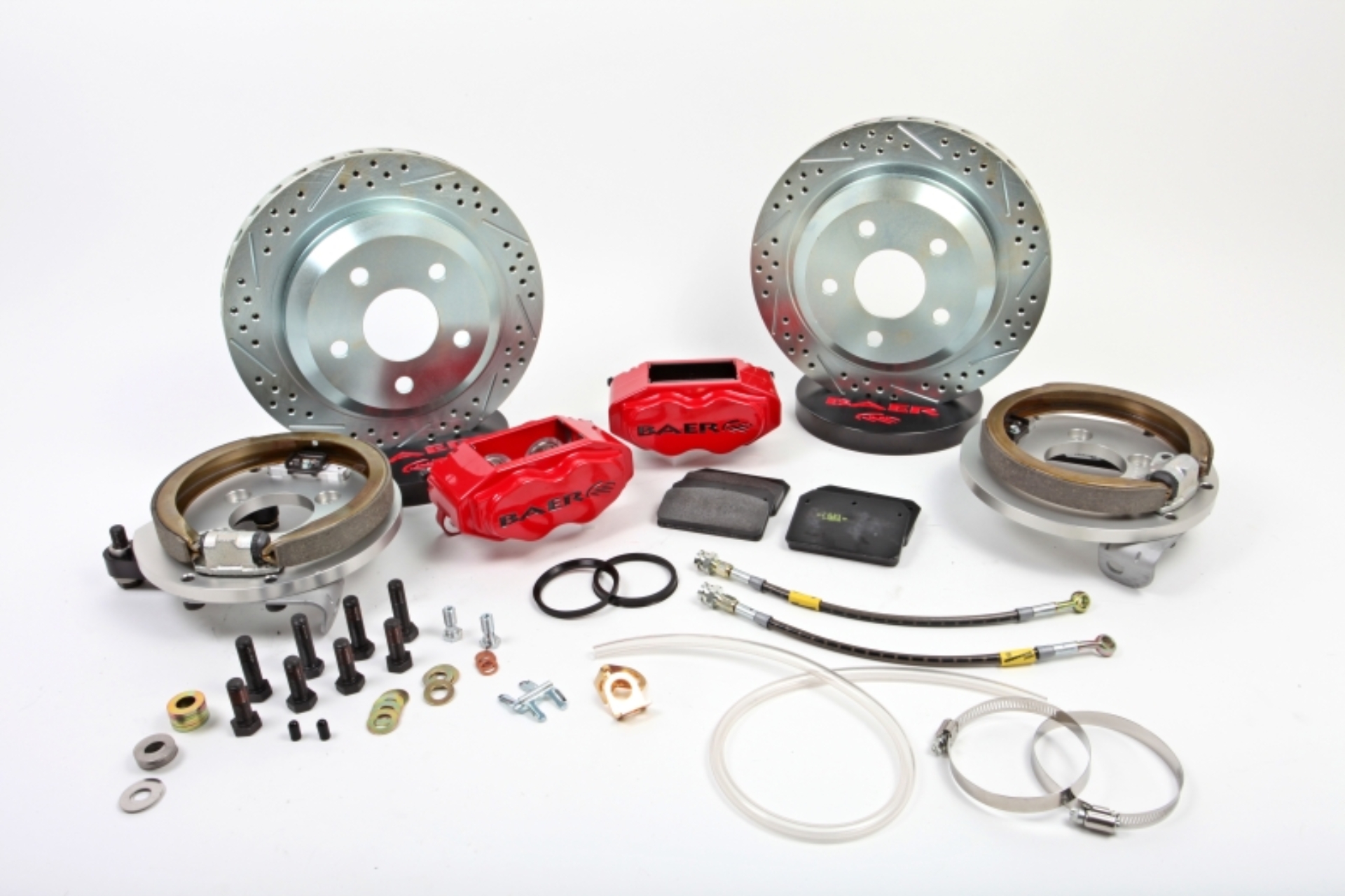

Baer Brakes Rear Ends w/ GM Small Pattern 10/12 Bolt C-Clip HE 12in SS4 Rear SDZ Brake Kit - FR
Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
CNC Machined from US Sourced Forged or Billet Aluminum
Baer Brakes 12" SS4 Rear Brake Kit, Fire Red, SDZ
1-Piece Slot, Drilled, Zinc-Plate Rotor
Dual Seals, Dust/Weather & Pressure
12 SS4 R Brk Kit Fire R SDZ
Powder Coated Finish
Brake Upgrade Kit
BAER DBUK
