BMR's suspension designed the SB042 sway bar for street performance, drag race, autocross, and road race applications. The large adjustable sway bar has four positions, giving you the versatility to drive to and from the track and still out handle the competition with the same sway bar. The SB042 gives you a 16%-270% increase in rate over the stock bar (depending on year and model). These rate increases and adjustability allow you to fine-tune the handling characteristics of the suspensions you can drive harder through corners with minimal body roll. The hollow design allows for loads of strength without adding a lot of weight. If your a drag racer, but don't want a solid-mounted antiroll bar on the street, the SB042 is stiff enough to keep the body flat for hard launches and soft enough to maintain streetability. This allows for more sway bar control, which equals better handling. When performance is a must, rely on BMR's suspension!BMR's suspensions SB042 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!2005-2010 GT 20mm Solid 133% 169% 214% 270%2011+ V6 22mm Solid 52% 76% 105% 142%2011+ GT500 24mm Solid 16% 34% 56% 84%BOSS 302 25mm Solid -10% 3% 20% 42%BOSS 302 Leguna Seca 26mm Solid -17% -4% 11% 30%.
The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB042 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 25mm DOM tubing, the SB042 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB042 attaches to your Mustang with fabricated end links and 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The fabricated laser cut, TIG-welded steel sway bar end links are reinforced to minimize deflection. The sway bar is 4-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.
BMR Suspension designed the SB042 sway bar kit for street performance, autocross, and road race applications.
16%-270% increase is sway bar rate over stock sway bar (depending on year and model)

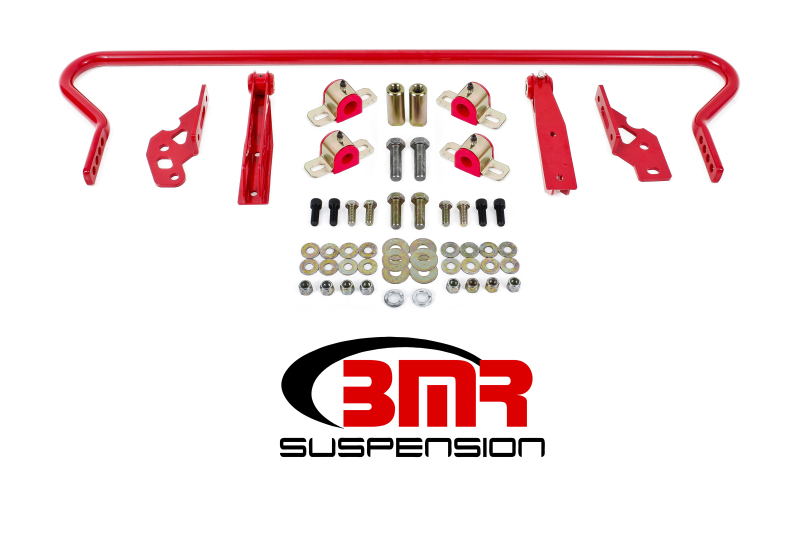

BMR 11-14 S197 Mustang Rear Hollow 25mm Adj. Sway Bar Kit w/ Bushings - Red
Designed for street performance, autocross, and road race applications
Manufactured from 25mm heavy-wall DOM tubing for increased strength
Sway Bar Kit With Bushings, Rear, Adjustable, Hollow 25mm
Adjustability allows for fine-tuning of suspension
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
High-durometer, greasable polyurethane bushings
Cold formed to better resist torsional fatigue
Four-way adjustable for street and track use
Dramatically reduces body roll
Proudly designed in the U.S.A.
Fabricated sway bar end links
1-2 hour installation time
Proudly made in the U.S.A.
Zinc-plated inner sleeves
Durable powdercoat finish
BMR Suspension - SB042R
Fits all S197 Mustangs
Sway Bar Kit
