BMR's suspension designed the SB012 sway bar for street performance, autocross, and road race applications. The large adjustable sway bars three positions give you the versatility to drive to and from the road course or autocross and still out handle the competition with the same sway bar. The SB012 front sway bar gives you a 87%-137% increase in sway bar rate. These rate increases and adjustability allow you to fine-tune the handling characteristics of your Mustang so you can drive harder through corners with minimal body roll. The hollow design allows for loads of strength in the lightest package possible. This means increased performance with no sacrifices. The SB012 attaches to your G8 with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. This allows for more sway bar control, and more control equals better handling. When performance is a must, rely on BMR's suspension!BMR's suspensions SB012 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!Hole 1 87% stiffer than OE bar. Hole 2 137% stiffer than OE bar.
The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB012 front sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 29mm DOM tubing, the SB012 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection. The sway bar is 2-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.
BMR Suspension designed the SB012 sway bar kit for street performance, autocross, and road race applications.

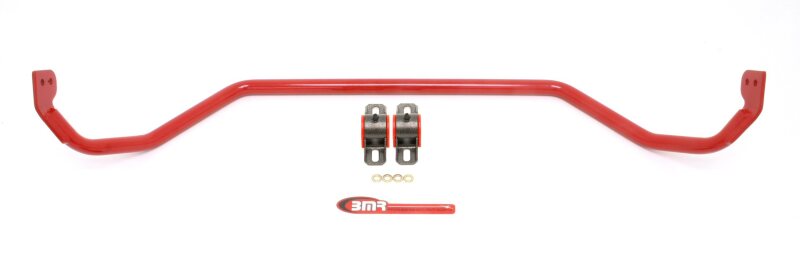

BMR 08-09 Pontiac G8 Front Hollow 29mm Adj. Sway Bar Kit w/ Bushings - Red
Designed for street performance, autocross, and road race applications
Manufactured from 29mm heavy-wall DOM tubing for increased strength
Sway Bar Kit With Bushings, Front, Adjustable, Hollow 29mm
Adjustability allows for fine-tuning of suspension
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
Cold formed to better resist torsional fatigue
88-durometer, greasable polyurethane bushing
Two-way adjustable for street and track use
87%-137% increase in sway bar rate
Dramatically reduces body roll
Proudly designed in the U.S.A.
1-2-hour installation time
Proudly made in the U.S.A.
Zinc-plated inner sleeves
Durable powdercoat finish
BMR Suspension - SB012R
Fits Pontiac G8
Sway Bar Kit
