Hard launches from high horsepower cars at the drag strip require more than just a normal street-style sway bar. BMR's suspensions Xtreme Anti Roll Bar for 2005-2014 Mustang or 2007-2014 Shelby GT500 allows you to launch harder without excessive body roll limiting traction, with little sacrifice to your Mustangs street manners. Manufactured from heavy-wall 1.375-inch DOM tubing, BMRs Xtreme Anti Roll Bar (XSB005) is designed to eliminate body roll and transfer as much power as possible to the rear wheels. The XSB005 attaches to your Mustang with polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing under high compression loads. The fabricated laser cut, steel sway bar arms are reinforced to add strength and minimize deflection.BMR's suspension designed the XSB005 sway bar for street performance and drag race applications. The large adjustable sway bar has three positions, giving you the versatility to drive to the track and race at the track with the same sway bar. The XSB005 gives you as much as 4,090% increase (2,430%, 3,080%, and 4,090%) in rate over the stock bar (depending on year and model). These rate increases and adjustability allow you to almost eliminate body roll so you can leave the starting line harder with maximum traction. The hollow design gives you loads of strength without adding a lot of weight. When performance is a must, rely on BMR's suspension!BMR's suspensions XSB005 anti roll bar is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!NOTE: Recommended for drag race applications only. Minimal welding necessary.
BMR Suspension designed the XSB005 anti-roll bar for drag race and limited street applications.

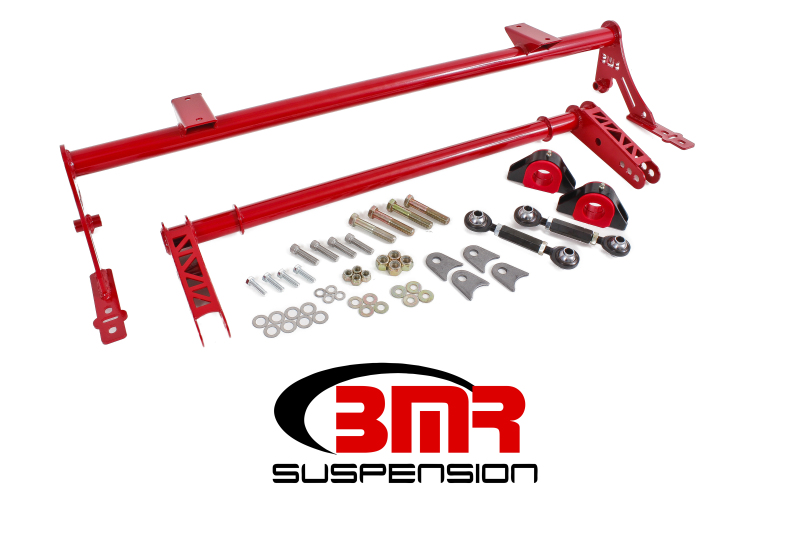

BMR 05-14 S197 Mustang Rear Bolt-On Hollow 35mm Xtreme Anti-Roll Bar Kit (Polyurethane) - Red
Up to 4,090% increase is sway bar rate over stock sway bar (depending on year and model)
Manufactured from 1.375-inch heavy-wall DOM tubing for increased strength
Designed for street performance and drag race applications
Fits all 2005-2014 Mustangs and 2007-2014 Shelby GT500s
Three-way adjustable for limited street and track use
Adjustability allows for fine-tuning of suspension
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
Cold formed to better resist torsional fatigue
88-durometer, greasable polyurethane bushings
Xtreme Anti-roll Bar Kit, Rear, Hollow 35mm
Dramatically reduces body roll
Proudly designed in the U.S.A.
1-2-hour installation time
Proudly made in the U.S.A.
Durable powdercoat finish
BMR Suspension - XSB005R
Anti-roll Bar Kit
