The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB023 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty 22mm bar stock, the SB023 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB023 attaches to your Mustang with billet aluminum end links and 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing. The CNC-machined, billet aluminum sway bar end links eliminate deflection.BMR's suspension designed the SB023 sway bar for street performance, autocross, and road race applications. The non-adjustable SB023 gives you a 52% increase in rate over the stock bar (depending on year and model). The rate increases gives you improved handling characteristics so you can drive harder through corners with minimal body roll. This allows for more sway bar control, which equals better handling. When performance is a must, rely on BMR's suspension!BMR's suspensions SB023 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!NOTE: BMR'sB023 rear sway bar is not compatible with convertible models unless the additional OE convertible bracing is removed.
BMR Suspension designed the SB023 sway bar kit for street performance, autocross, and road race applications.

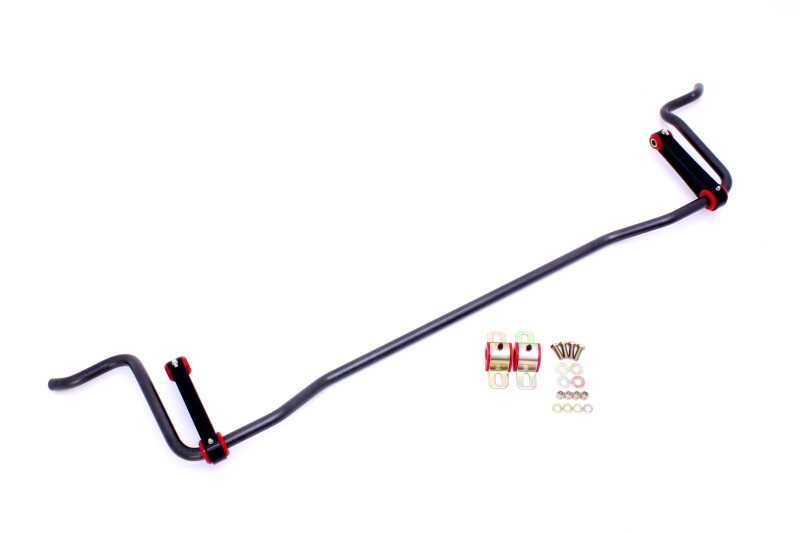

BMR 05-10 S197 Mustang Rear Solid 22mm Sway Bar Kit w/ Bushings & Billet Links - Black Hammertone
52% increase is sway bar rate over stock sway bar (depending on year and model)
Designed for street performance, autocross, and road race applications
Manufactured from 22mm heavy-duty bar stock for increased strength
Sway Bar Kit W/ Bushings And Billet Links, Rear, Solid 22mm
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
CNC-machined billet aluminum sway bar end links
Cold formed to better resist torsional fatigue
88-durometer, greasable polyurethane bushings
Dramatically reduces body roll
Proudly designed in the U.S.A.
1-2 hour installation time
Proudly made in the U.S.A.
Zinc-plated inner sleeves
Durable powdercoat finish
BMR Suspension - SB023H
Fits all S197 Mustangs
Non-adjustable design
Sway Bar Kit
