One of the most technologically advanced handheld testers currently available, the BVA-260 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load" technology to deliver a BCI compliant true load test, the BVA-260 can precisely diagnose the battery, starting and charging system in under 82 seconds! Includes a built in infrared battery temperature sensor to improve testing accuracy. Features Bite Rite Clamp design to enable easy connection to top post batteries. Smart USB port for easier, more efficient data retrieval and software upgrades.
Patented Test Process And Algorithm Allowing Operators Of This Product To Rapidly Measure A Batterys Ability To Provide Adequate Cranking Power To Start The Vehicle Without The Need For Time Consuming Manual Electrical System Load Tests.
This Tester Has The Ability To Apply A Known Significant Load (True-Load) Directly Through The Tester Connections Allowing For A More Rapid And Accurate Test Of The Vehicles Battery, Starter, And Charging System By The Operator
This Provides The Ultimate In Accurate High-Speed Battery Testing When Paired With Autometers Advanced Digital Pulse Load Technology Process, Reducing The Margin Of Operator Error And Workload During The Diagnosis.
Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell.
Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
16 Gauge, 20" leads with professional grade Bite Rite clamps that are easily field serviceable
Easily Upgraded For Future Tech Enhancements Using Autometers Exclusive Amp Link Software.
True-Load - This AutoMeter equipment is unique compared with other products on the market
This eliminates the need to apply inconsistent loads, such as headlights, fans, etc.

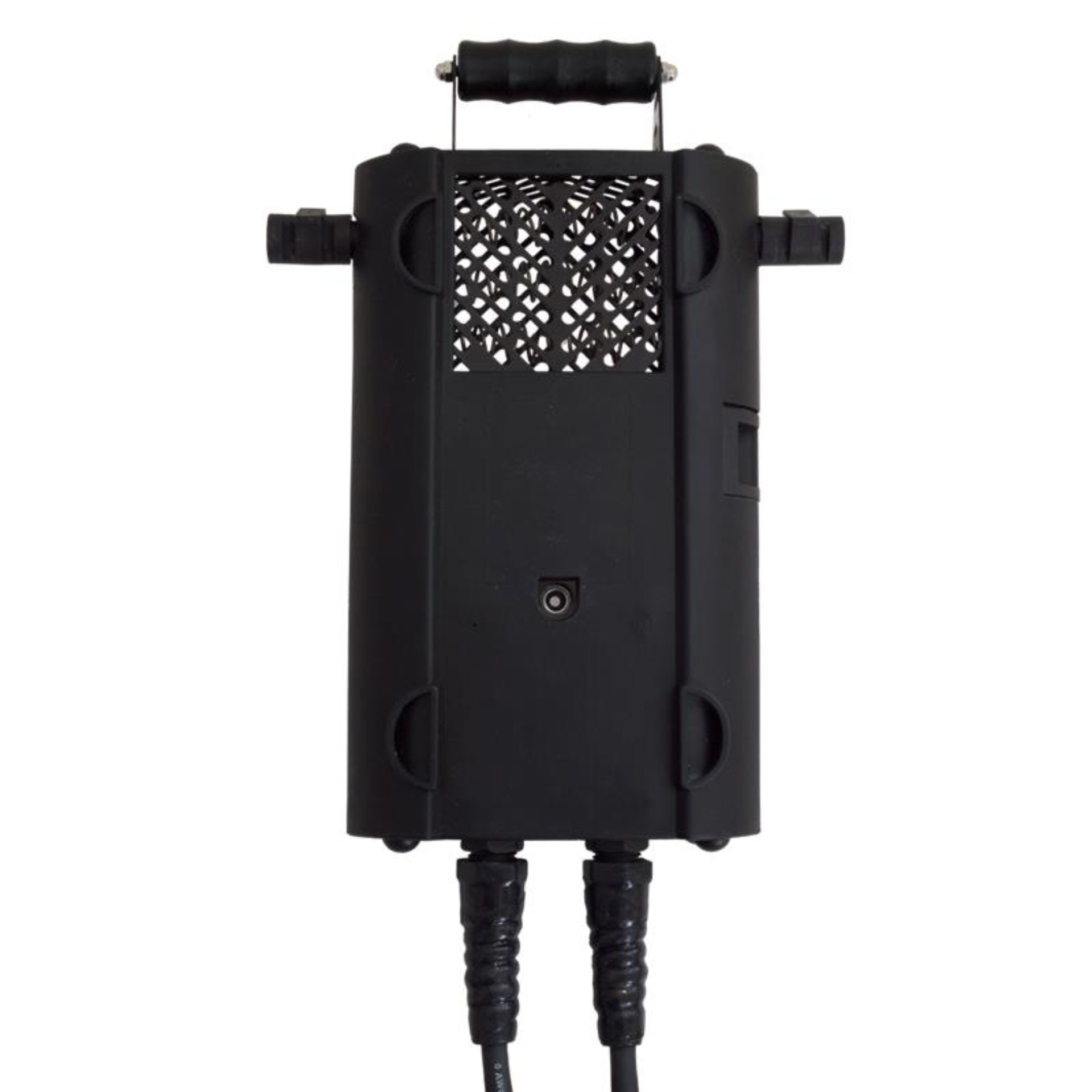

Autometer Handheld Electrical System Analyzer w/120 Amp Load for 6V/12V Applications
Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use.
which makes our products easier to use and more accurate.
English and Spanish language menus and test results.
HANDHELD ELECTRICAL SYS ANALYZER W/120 AMP LOAD
Advanced Digital Pulse Load (DPL) technology
HNDHLD ELTRCAL SYS ANLYZR W/120 AMP LOAD
HD TESTER 120A LOAD
TEST EQUIPMENT
Battery Tester
