Hand held battery and electrical system tester with an on-board 40 Amp load for most battery and electrical systems. Performs complete electrical system test in less than two minutes. Preforms voltage drop tests with included external leads.
V-Drop Technology - This unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance.
In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 - also detects discharged batteries, bad cells, and has built in reverse polarity protection.
Autometers V-Drop Technology Prevents The Need To Connect Additional Probes And/Or Disable Ignition Or Fuel Systems To Engage In Excessive Engine Crank Periods.
Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 40 amp True Load cell.
Battery Test Results Include: Measured True Cca, Voltage And Percent Of Charge, And The Batterys State Of Health (Good, Near End Of Life, Or Bad).
This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire.
Perfect tool box tester! Rugged engineered composite housing with protective rubber boot for years of service.
Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).

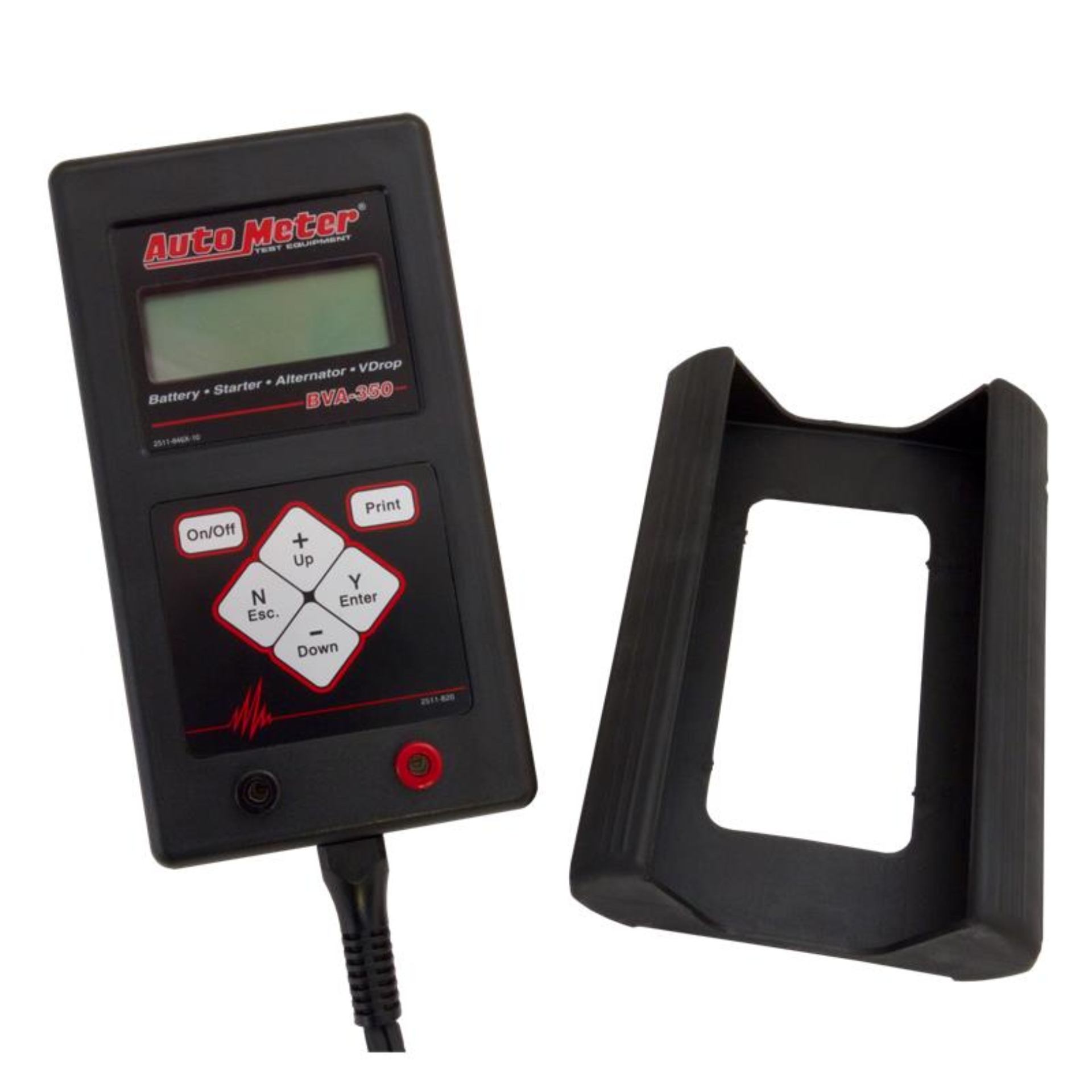

Autometer Handheld Automotive/Heavy Duty Truck Electrical System Analyzer 6V/12V Applications
30" - 16 gauge leads with professional grade clamps that are easily field serviceable.
Intuitive menu driven operation, transmitted via back lit LCD screen for ease of use.
This eliminates the need to apply inconsistent loads, such as headlights, fans, etc.
which makes our products easier to use and more accurate.
English and Spanish language menus and test results.
Automatically stores the last 100 tests in memory.
ANALYZER/TESTER HANDHELD
ANALYZER/TSTR HNDHLD
TEST EQUIPMENT
Battery Tester
