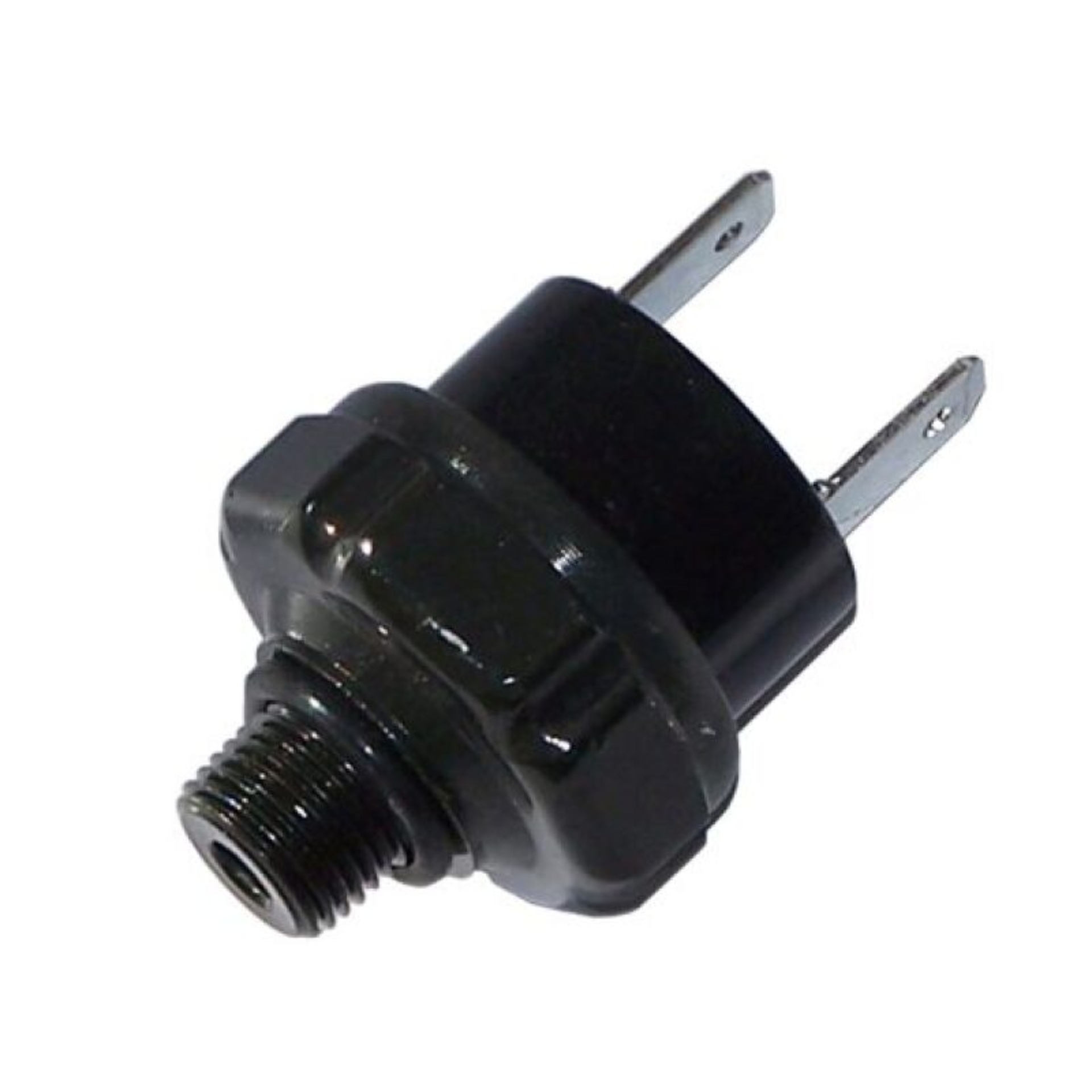

Kleinn Automotive Accessories Heavy duty tank-mount pressure switch 2 Male spade style terminal connections works with 6260RC Compressor, turns on at 90PSI and off at 120 PSI, a 5 % PSI variance possible, use a 145 PSI Safety relief valve with this, SKU 52145. The pressure switch receives 12 volt ignition power and sends signal to a required SPDT 30 amp relay (Model 340) that turns the compressor on and off automatically 90 PSI On / 120 PSI Off. We recommend the safety relief valve (52145) on the tank will release a burst of air when the pressure switch fails, when you hear that, kill power to the compressor so that it doesn't burn itself out, then replace the pressure switch.
Kleinn Model 2120 Pressure Switch - On: 90 PSI - Off: 120 PSI - 2 Male Spade Connections - 1/4" NPT
Model 2120 Pressure Switch - On: 90 PSI - Off: 120 PSI - 2 Male Spade Connections
Model 2120 Pressure Switch- On: 90 PSI - Off: 120 PSI - 2 Male Spades - 1/4" NPT
Kleinn Tank mount pressure switch 1/4In M NPT - 90 PSI on/ 120 PSI off
Non-polarized leads (Ignition 12v input, 12v Output to Relay)
The use of a relay is recommended (Kleinn model 340)
Multi-Function Air Compressor Pressure Switch
1/4" M NPT w/ 2 Male Spade Terminals
Note: 5% tolerance standard
On: 90 PSI - Off: 120 PSI
90/120 PSI Press. Switch
2 Male Spade Connections
90/120 PSI Switch
