Dirt Logic 4.0 Resi Coilover. The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close. Features: 4.0" OD Stainless Steel Body. 3 5/8" OD Billet Aluminum Piston. 1 1/4" NitroSteel Black Piston Rod. Cold Wound Coil Springs. Adjustable Coilover Construction. 3/4" Spherical Ball Mounting Ends. 4.0" OD Aluminum Remote Resi. Extended Length - E26.64. Collasped Length - C17.51. Stroke Length - S9.130. Top Mount - B2 . Bottom Mount - B1.

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

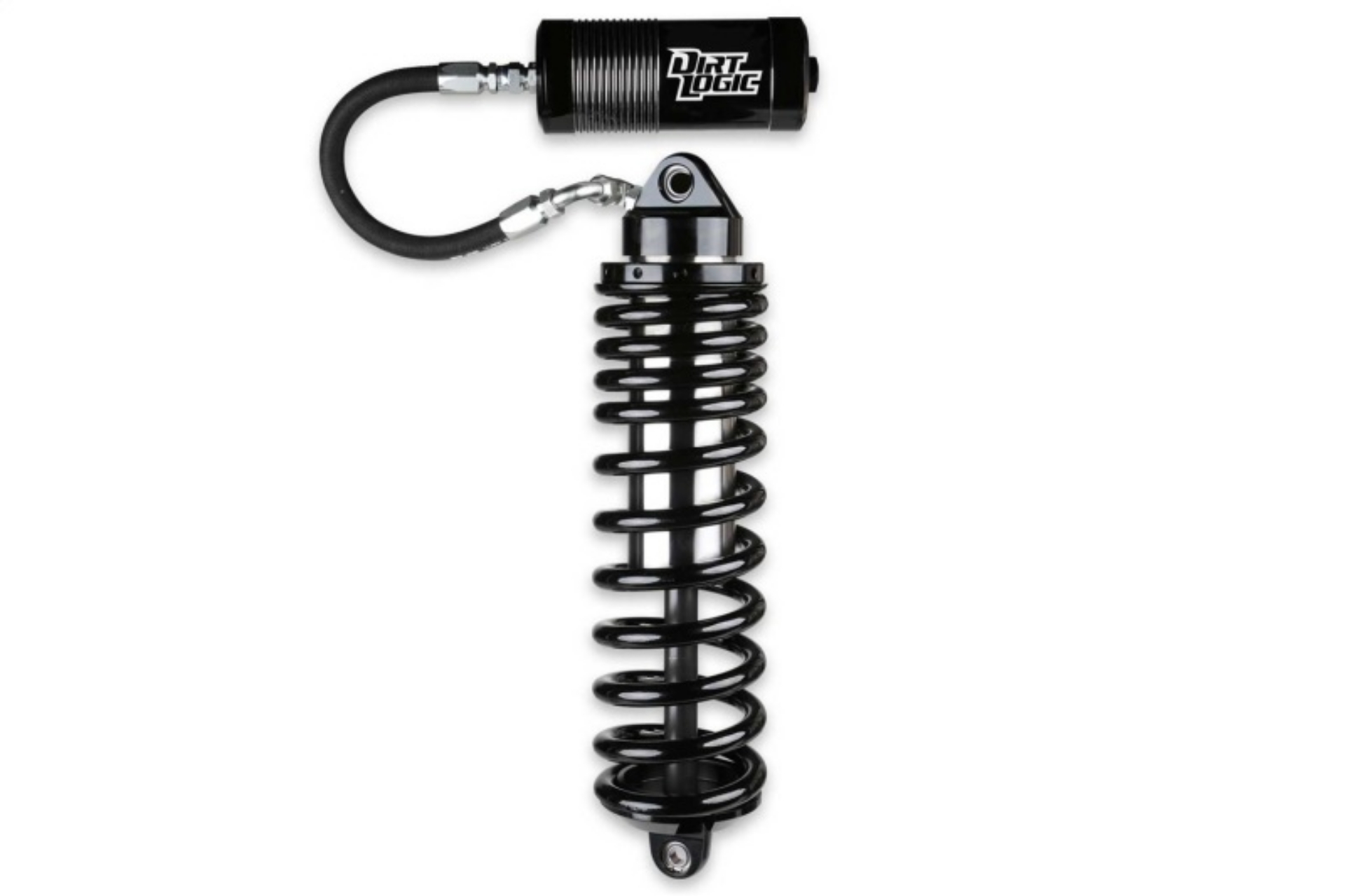

Fabtech 17-20 Ford F250/350 4WD Diesel 8in Front Dirt Logic 4.0 Reservoir Coilover - Passenger

Shock Absorber and Coil Spring Assembly

NO WHEELS/TIRES; 0. NO FOOTNOTES

Dirt Logic 4.0 Resi Coilover

4.0DLSS R/R 17 SD 8in. PASS

4.0DLSS R/R 17 SD 8" PASS

4.0DLSS R/R 17 SD 8"

CoilOvr
