The goal was two-fold: to fit a larger shock AND run something stronger than the single-shear, pin-style factory Ford mount. Those who have been following us for a while know we’ve been working on Dominator Kit (3.0″ King Shock) since the platform was released. There are few things to compare with the on and off-road ride of a 3.0″ Diameter shock but the constraints of the new Super Duty wouldn’t make easy work of squeezing these giant shocks into the factory infrastructure; nor would the pin-style factory mount hold up to the forces these monster-shocks would apply to them.
In 2017, Ford swapped the Super Duty to a boxed frame. This was great news for Ford owners looking for better frame rigidity and longevity; unfortunately, it came at the cost of many of our bolt-on upgrades. As the new frames are hollow, boxed steel, there were no more riveted buckets or shock mounts to which we’d become accustomed to grinding, drilling and replacing with stronger alternatives. We had to get creative…
The ARE NOT intended for use with factory style shocks, or shocks with bushings. We include the misalignment spacers to adapt any off-road race shock (I.E. – King/Fox) utilizing a 5/8″ Internal Diameter Uniball to the 14mm x 1.667″ mounting dimension. Although not required, these would made a fantastic upgrade to the E-Venture!
These will NOT fit the Pintop. The rear remote reservoir shocks of the Pintop kit have a 90° hose fitting that comes directly out of the top cap; this will contact the bracing of the shock mount.
Carli Weld-In Shock Mounts are a massive strength improvement over the weak factory shock mounts and will accomodate up to a 3.0" shock

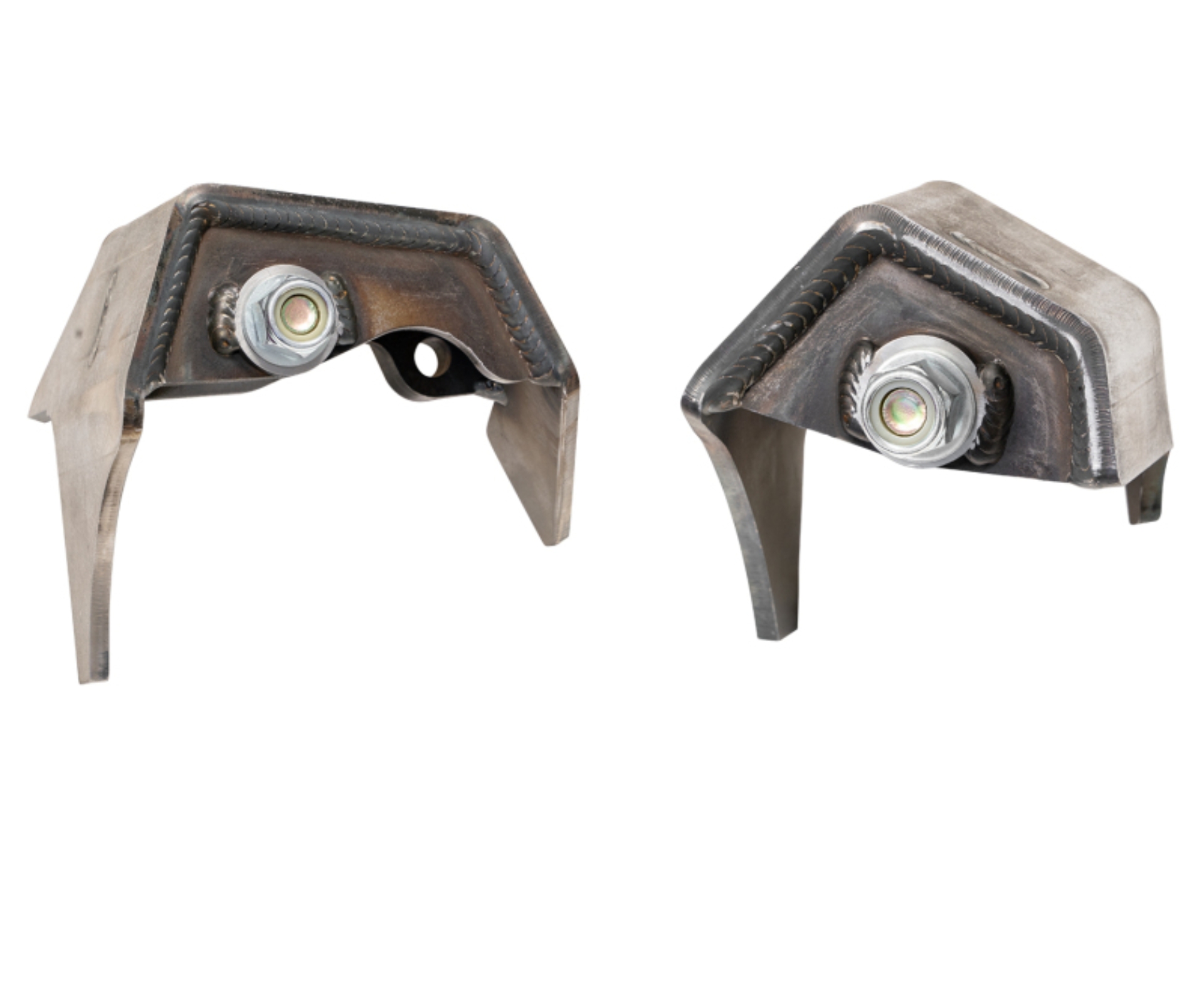

Carli 2017+ Ford F250/350 4x4 Weld-In Rear Shock Mount Pair
Fits King 3.0" shock in factory location
Includes flag bolt for easy installation
Carli Fabricated Rear Shock Mount, Pair
WILL NOT WORK with factory style shocks
Massive strength increase
Fits 2017+ F250/350 4x4
Shock Absorber Mount
REQUIRES WELDING
Fitment Notes:
CS-FRSM-1723
